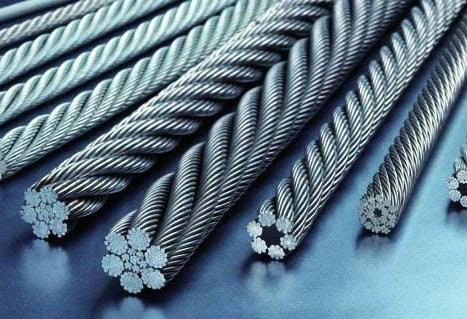

Rope |
|

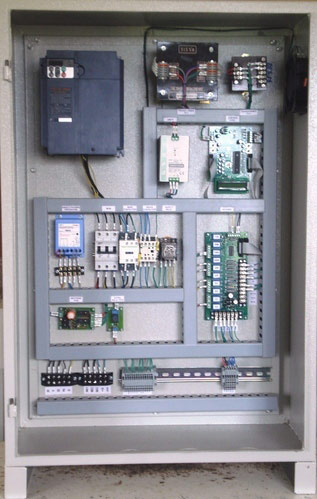

Control Panel |
|
|
|
|
|
|

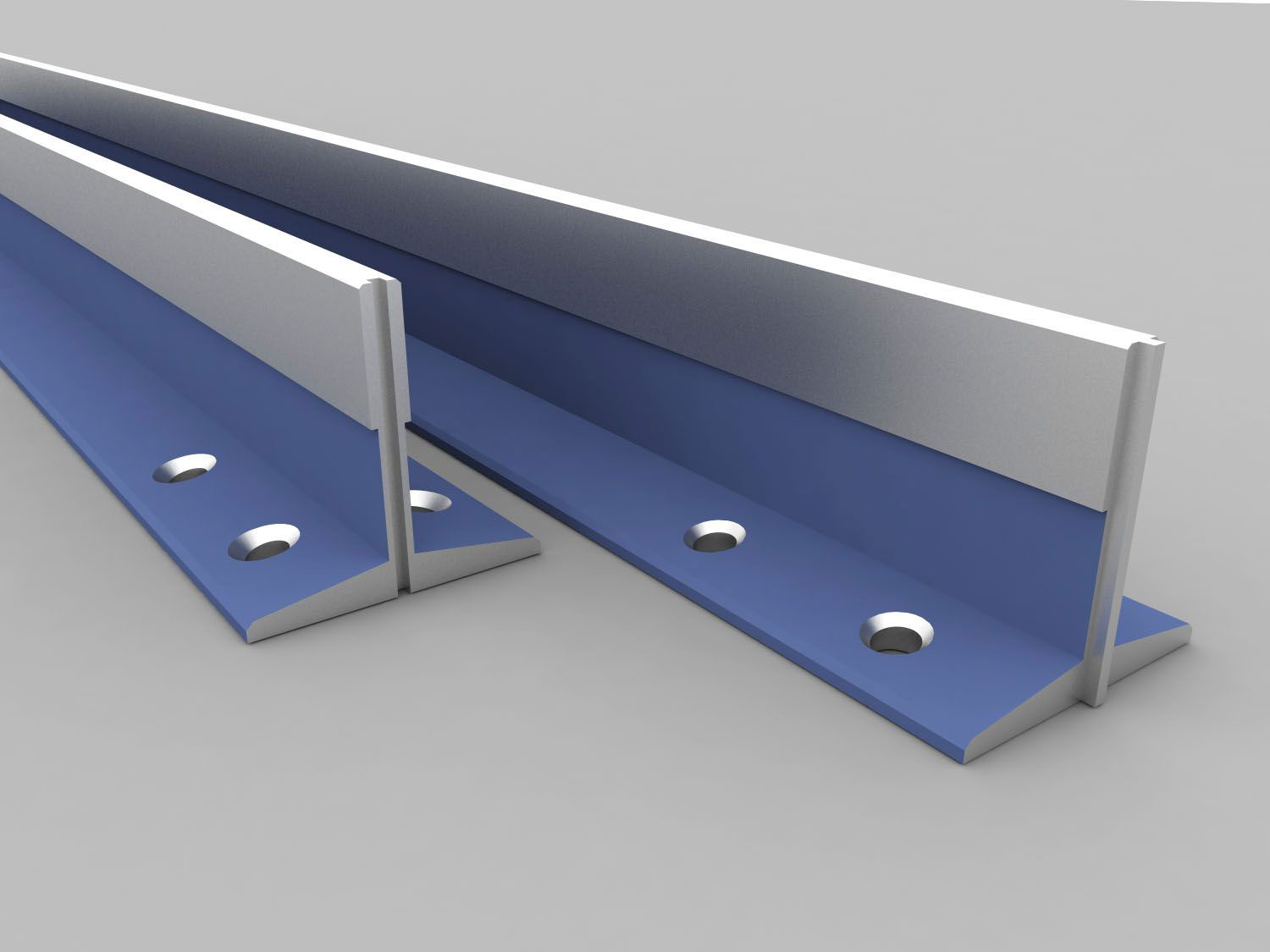

| Guide Rails |
|

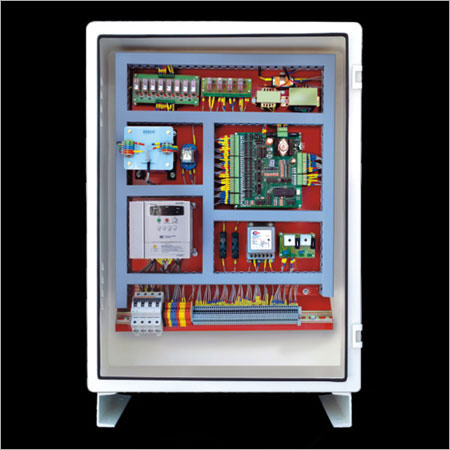

Control Panel |
|

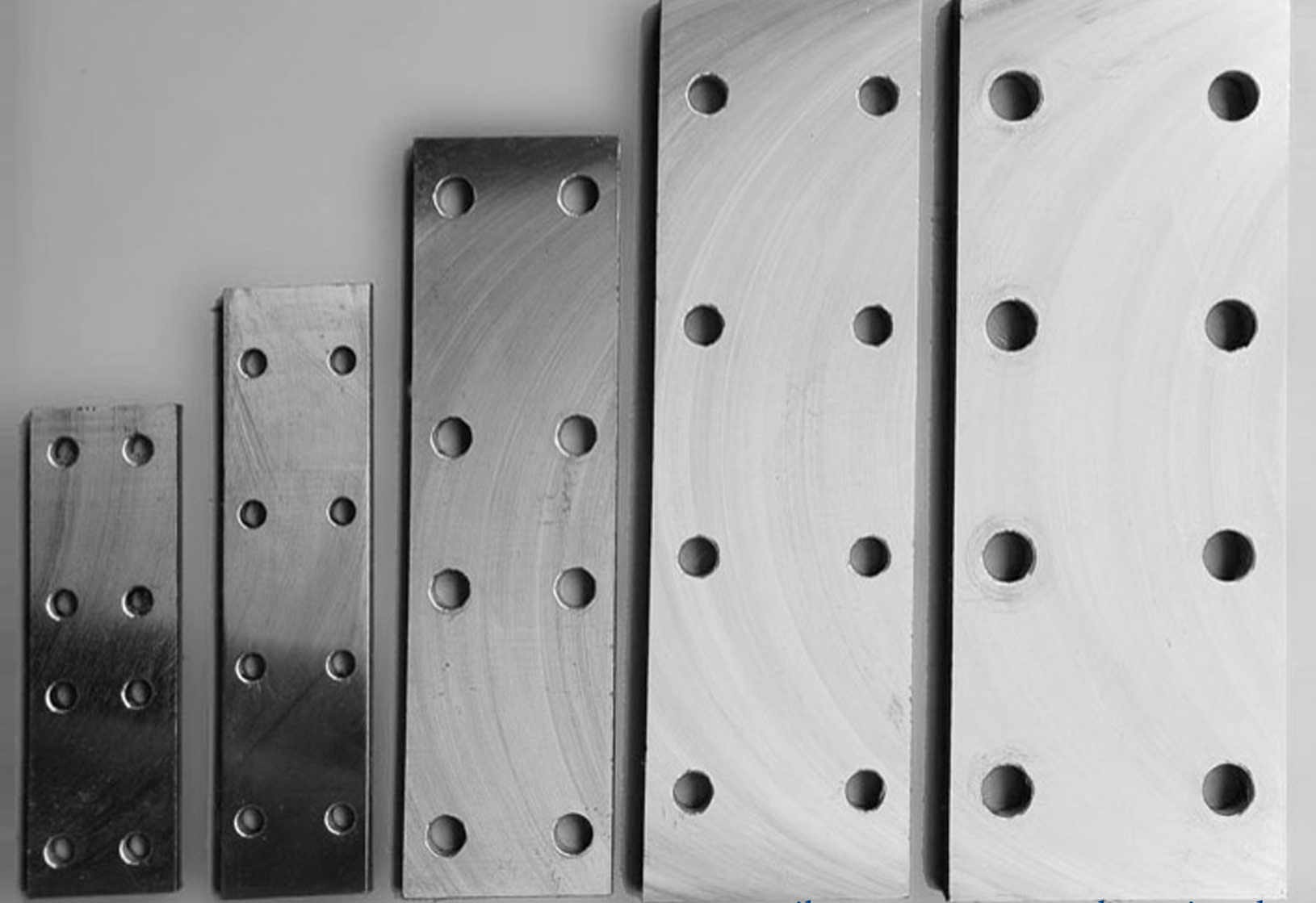

Rail Joint Plates |
 General Purpose VSD
Range
 0.75kW-2.2kW, 1Ph 240V Input; 3Ph 0-240V output
0.75kw-15kW, 3Ph, 415V Input; 3Ph 0-415V output
Built-in RFI Filter
Sensorless Vector Control provides up to 200% torque at low speeds.
Built-in PID Control
Extensive Diagnostic Tool
Easy to Set-up and Operate
Multi-function Programmable Inputs/Outputs
C-Tick, CE, UL approved
RS485, Comms Compatible, Profibus, DeviceNet, CC-Link, CAN Open & EtherNet options

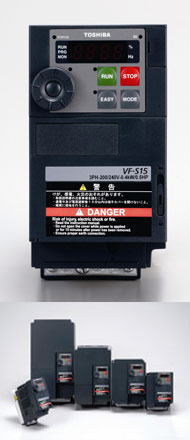

VF-S15 is a compact drive designed for powerful performance in wide ranging applications. It is a sensorless vector control drive providing high torque throughout the speed range.
Available in two types - 1Ph, 240V input (0.4-2.2kW) and 3Ph, 415V input (0.75-15kW), VF-S15 drives are universally accepted for most industrial applications.
Features:
Sensorless Vector Control Drive
Ultra-Compact size
Safe Power removal (EN954-1 category 3, AS/IEC61800-5-2 SIL2)
Built-in RFI filter
Suitable for >50°C Ambient Temperature
Easy to set and operate
Profibus, DeviceNet, CC-Link, CAN Open & EtherNet options
My function
Remote control key-pad option
CE, UL and C-Tick compliant
Applications:
Conveyors
Mixers
Pumps
Hoists
Fans/blowers
Agitators
Packaging Machines etc
|
|
|
